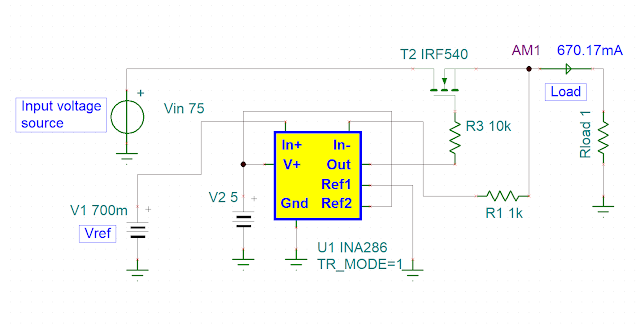

This circuit effectively controls the output current flow. The reference voltage V1 can be set to the desired output current; for instance, V1=700 mV sets the output current to 670 mA.
